Gypsum Block Plant

Gypsum block features fireproof, soundproof, heat insulation, lightweight, shockproof, etc., is widely applied in architectural industry. We offer complete gypsum block plant solutions, production power 48,000 m2/year-96,000 m2/year. Services we offer:

• Plant turnkey project;
• Installation and testing;
• Device update and upgrade;
• Personnel training.

Features

We’ve developed semidry method gypsum block production line based on tradition methods to achieve better efficient. During the process, semidry gypsum injected into the cavity in a low water-powder ratio powder status, which shortens production time and saves cost. Our semidry gypsum block plant costs only 1/3 to 1/5 of the cost of aerated concrete block equipment to build in general. Our semidry gypsum block plant also features:

• Water-powder ratio 0.28-0.3 when getting formed using semidry method (0.8-0.9 using pouring method), able to be delivered to construction site 1 day after being formed.
• Automatic forming, conveying and packaging, personnel-saving.
• Hydration will be finished two hours after being formed, the strength, hardness and free water content of the gypsum blocks will be qualified for packaging and palletizing.

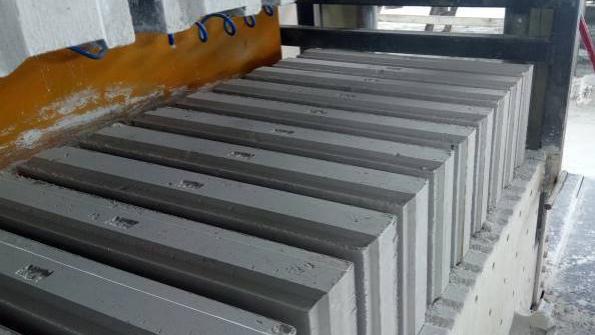

• Finished blocks can be nailed directly, which provides a feel of wooden texture. Blocks can be produced in standard density, or above 1200kg/m3 high density, which is qualified for sound insulation (45dB) and high strength (28-30MPa) requirements..

• Water supply system
• Power supply system (including PLC automatic control system)
• Hydraulic system
• Steam pump system
• Automatic feeding system
• Automatic graded storage and metering system
• Water, SK additives, gypsum powder, etc. Mixing systems
• Balanced distribution system

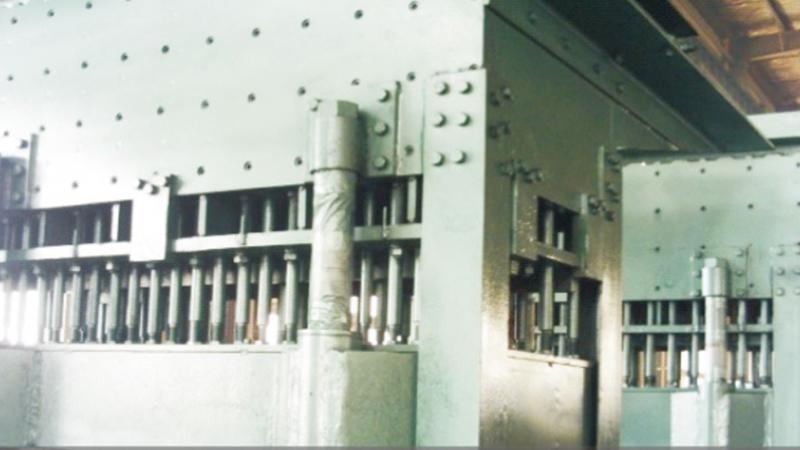

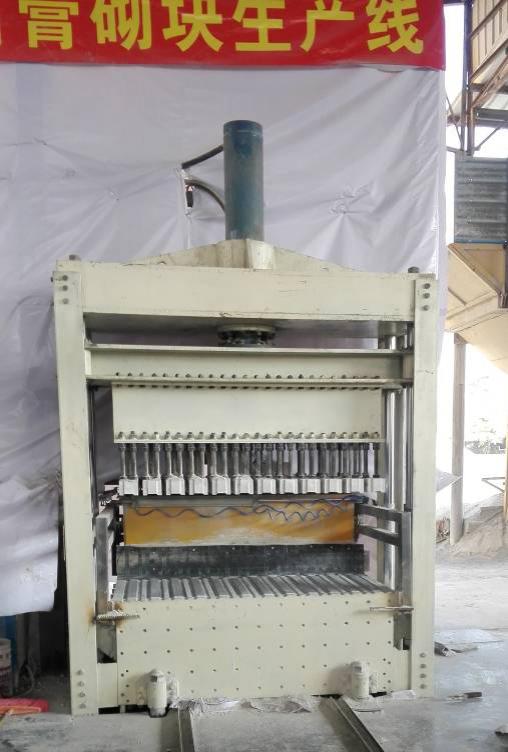

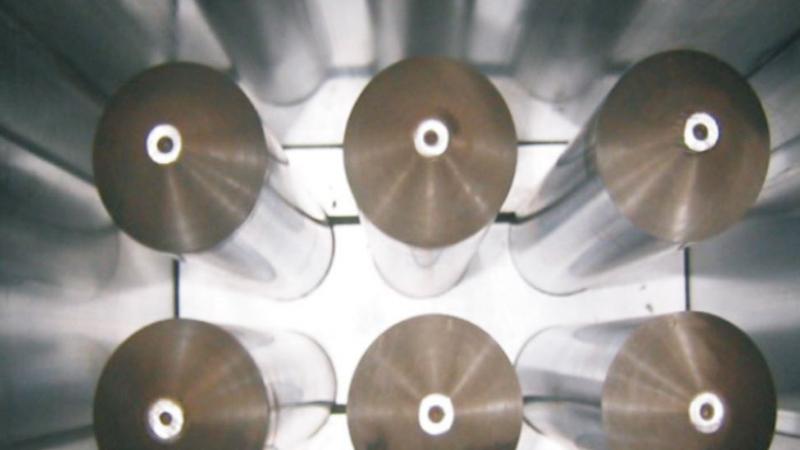

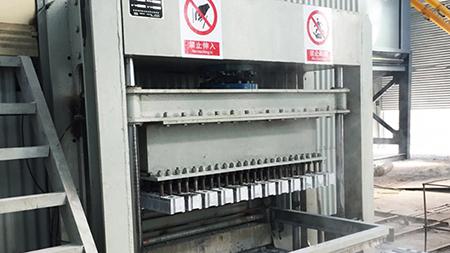

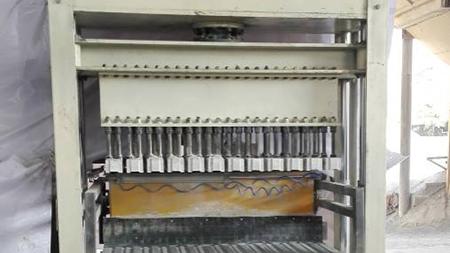

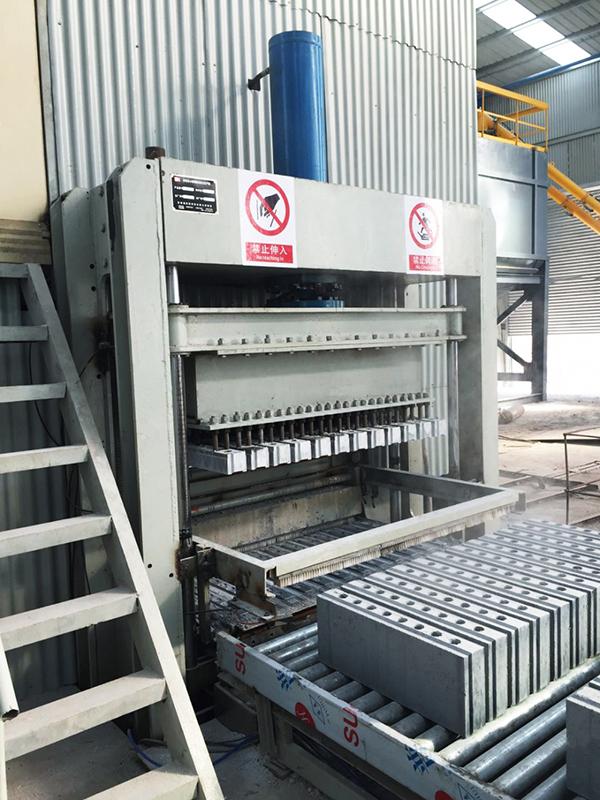

• Cavity mold forming system (including upper and lower trays, molding cavity, guide column, upper and lower hydraulic system, etc.)

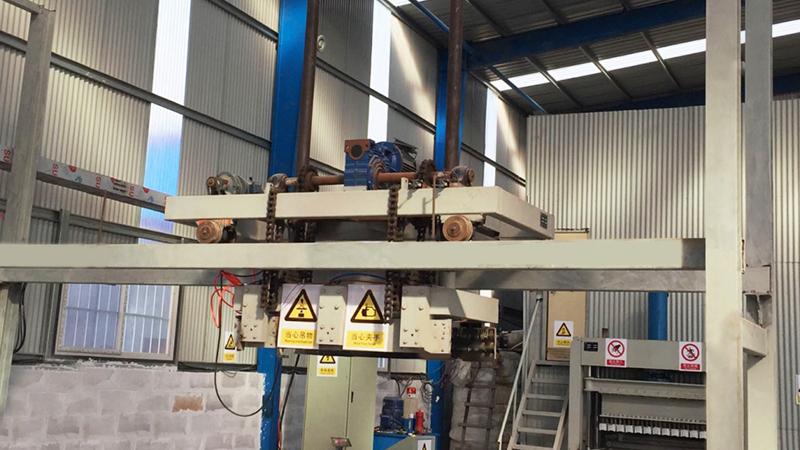

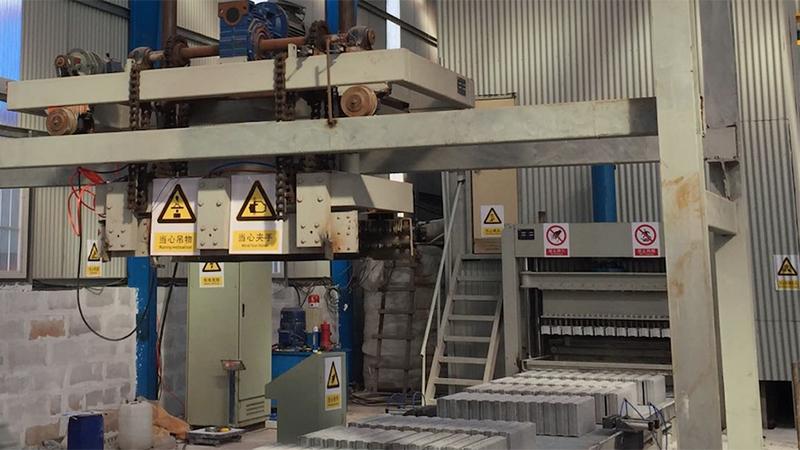

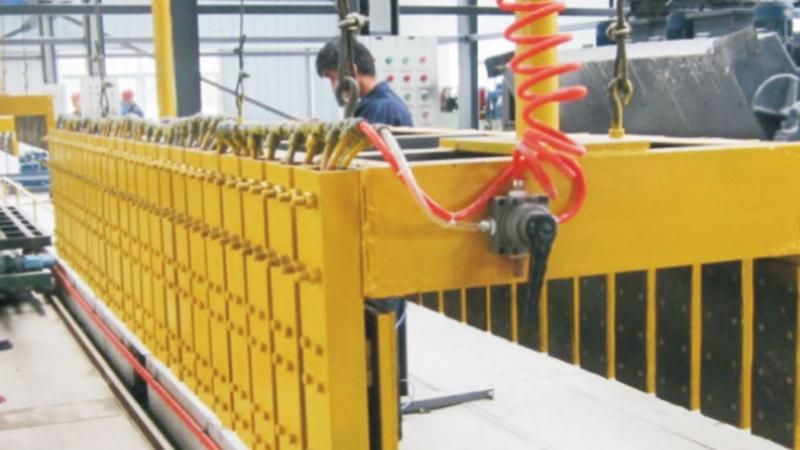

• Block moving system
• Block conveying system
• Block stacking system
• Block packaging system
